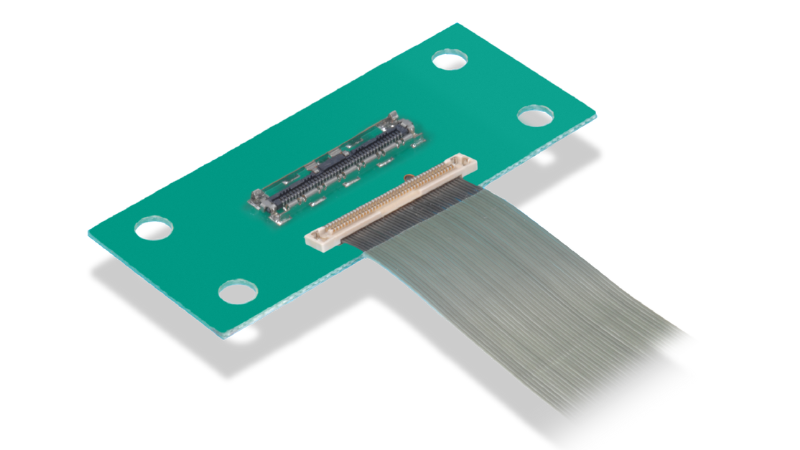

# 0.4mmピッチ垂直かん合 細線同軸コネクタ DF36シリーズ

## 高密度実装とノイズ対策を両立。低背・省スペース設計

![DF36](https://connectors.hirose.com/hubfs/DF36.png "DF36")

・高密度実装および小径のヒンジ対応
・シールド性能の強化
・クリック感のある確実なロック構造
・信頼性の高い接触構造
・はんだ上がり防止

<iframe data-hsv-src="https://play.hubspotvideo.com/v/43887700/id/196512965153?play_button_color=ffffff" referrerpolicy="origin" sandbox="allow-forms allow-scripts allow-same-origin allow-popups" allow="autoplay; fullscreen;" style="position: absolute !important; width: 100% !important; height: 100% !important; left: 0; top: 0; border: 0 none; pointer-events: initial" title="HubSpot Video" loading="lazy" data-hsv-id="196512965153" data-hsv-play-button-color="ffffff" data-hsv-width="1920" data-hsv-height="1080" data-hsv-full-width="false"></iframe>

- [![LP\_DF36\_Products\_Link\_Image](https://connectors.hirose.com/hs-fs/hubfs/LP_DF36_Products_Link_Image.jpg?width=800&height=450&name=LP_DF36_Products_Link_Image.jpg) 製品一覧ページ (スペック、図面、3D CAD)](https://www.hirose.com/ja/product/series/DF36)
- [![LP\_DF36\_Catalog\_Link\_Image](https://connectors.hirose.com/hs-fs/hubfs/LP_DF36_Catalog_Link_Image.jpg?width=800&height=450&name=LP_DF36_Catalog_Link_Image.jpg) カタログをダウンロード](https://www.hirose.com/ja/product/series/DF36/documents?path=%2Fapi%2Fv1%2Fseries%2FDF36%2Fdocuments%2Fproduct_series_catalog%2Fcontent%3Flang%3DJA)
