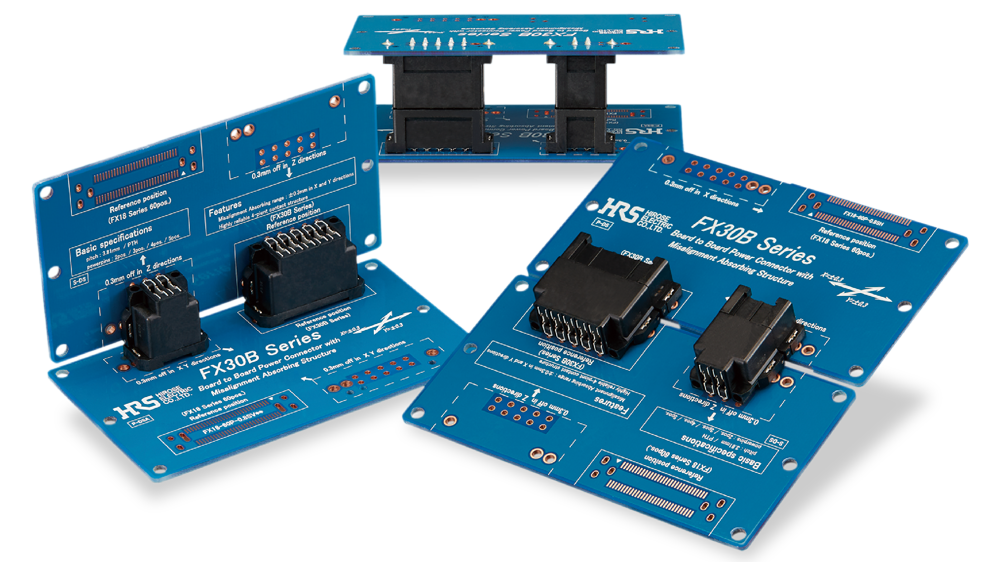

# 基板間接続用電源コネクタ FX30Bシリーズ

## 高電流対応、ズレも吸収する信頼接続

![FX30B](https://connectors.hirose.com/hubfs/FX30B.png "FX30B")

・コンタクトピッチ：3.81mm、7.62mm
・電流容量：13～25A/ピン
・接続タイプ：水平、垂直、平行
・芯数：2 / 3 / 4 / 5芯
・位置ズレ吸収可動量：±0.3mm

<iframe data-hsv-src="https://play.hubspotvideo.com/v/43887700/id/196159751554?play_button_color=ffffff" referrerpolicy="origin" sandbox="allow-forms allow-scripts allow-same-origin allow-popups" allow="autoplay; fullscreen;" style="position: absolute !important; width: 100% !important; height: 100% !important; left: 0; top: 0; border: 0 none; pointer-events: initial" title="HubSpot Video" loading="lazy" data-hsv-id="196159751554" data-hsv-play-button-color="ffffff" data-hsv-width="1920" data-hsv-height="1080" data-hsv-full-width="false"></iframe>

- [![LP\_FX30\_Products\_Link\_Image](https://connectors.hirose.com/hs-fs/hubfs/LP_FX30_Products_Link_Image.jpg?width=800&height=450&name=LP_FX30_Products_Link_Image.jpg) 製品一覧ページ (スペック、図面、3D CAD)](https://www.hirose.com/ja/product/c/FX30)
- [![LP\_FX30B\_Catalog\_Link\_Image](https://connectors.hirose.com/hs-fs/hubfs/LP_FX30B_Catalog_Link_Image.jpg?width=640&height=360&name=LP_FX30B_Catalog_Link_Image.jpg) カタログをダウンロード](https://www.hirose.com/ja/product/series/FX30/documents?path=%2Fapi%2Fv1%2Fseries%2FFX30%2Fdocuments%2Fproduct_series_catalog%2Fcontent%3Flang%3DJA)
